A special movement which uses mecanim target. Typically for acrobatic moves. More...

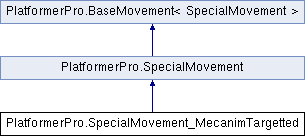

Inheritance diagram for PlatformerPro.SpecialMovement_MecanimTargetted:

Public Member Functions
override Movement	Init (Character character, MovementVariable[] movementData)
	Initialise the mvoement with the given movement data. More...

override bool	WantsSpecialMove ()
	Gets a value indicating whether this movement wants to do a special move. More...

override void	DoMove ()
	Moves the character. More...

override bool	ForceMaintainControl ()
	If this is true then the movement wants to maintain control of the character even if default transition conditions suggest it shouldn't. More...

override void	DoSpecialMove ()
	Start the special move. More...

override void	LosingControl ()

Public Member Functions inherited from PlatformerPro.BaseMovement< SpecialMovement >
sealed override Movement	Init (Character character)
	Initialise this movement. More...

bool	IsMovementDataDifferent (MovementVariable[] originalMovementData)
	Determines whether this instances movement data is different from the supplied originalMovementData. More...

Public Attributes
bool	requiresJumpButton
	Do we need to push the jump button to start this movement. More...

float	requiredSpeed
	How fast we need to be going before we can start this movement. More...

AvatarTarget	targetLimb
	Limb that will be targetted to the target position from the SpecialPlatform. More...

float	targetStartTime
	Normalised time that the targetting starts. More...

float	targetEndTime
	Normalised time that the targetting ends. More...

AnimationState	animationState
	Animation state that we will set when playing this special move. More...

Protected Member Functions
virtual bool	CheckPlatform (SpecialMovementPlatform platform)
	Check if we should do a move based on the special platform. More...

virtual void	ProcessMatchTarget ()

Protected Attributes
Vector3	targetPosition
	Cached copy of the target position. More...

bool	moveStarted
	Have we started the move? More...

Animator	myAnimator
	Cached reference to the animator. More...

bool	originalRootMotionState
	Copy of the original value of the apply root motion variable. We will set state back to this on move completion. More...

int	facingDirection
	Direction we were facing when move began. More...

Protected Attributes inherited from PlatformerPro.BaseMovement< SpecialMovement >
Movement	implementation
	The class that will do the movement. More...

string	movementType
	The type of movement as a string. More...

MovementVariable[]	movementData
	Data that should be applied to the movement type on init. More...

Static Protected Attributes
const int	RequiresJumpButtonIndex = 0
	The requires jump button index. More...

const int	RequiredSpeedIndex = 1
	The index of the required speed. More...

const int	TargetLimbIndex = 2
	The index of the target limb as int value. More...

const int	TargetStartTimeIndex = 3
	The index of the target start time value. More...

const int	TargetEndTimeIndex = 4
	The index of the target end time value. More...

const int	AnimationAsIntIndex = 5
	The index of the animation as in value. More...

const int	MovementVariableCount = 6
	The size of the movement variable array. More...

Properties
new static MovementInfo	Info `[get]`
	Static movement info used by the editor. More...

override AnimationState	AnimationState `[get]`
	Gets the animation state that this movement wants to set. More...

override int	FacingDirection `[get]`
	Returns the direction the character is facing. 0 for none, 1 for right, -1 for left. This overriden version always returns the input direction. More...

override bool	ShouldApplyGravity `[get]`
	Shoulds the apply gravity. More...

override RaycastType	ShouldDoBaseCollisions `[get]`
	Gets the should do base collisions. More...

Properties inherited from PlatformerPro.SpecialMovement
new static MovementInfo	Info `[get]`
	Static movement info used by the editor. More...

Properties inherited from PlatformerPro.BaseMovement< SpecialMovement >
virtual string	MovementType `[get, set]`
	The type of movement as a string. More...

virtual MovementVariable[]	MovementData `[get, set]`
	Data that should be applied to the movement type on init. More...

new static MovementInfo	Info `[get]`
	Static movement info used by the editor. More...

override bool	Enabled `[get, set]`
	A custom enable which base movements can use to pass on enable values. More...

override Movement	Implementation `[get]`
	Gets the underlying implementation. More...

Detailed Description

A special movement which uses mecanim target. Typically for acrobatic moves.

Member Function Documentation

◆ CheckPlatform()

virtual bool PlatformerPro.SpecialMovement_MecanimTargetted.CheckPlatform ( SpecialMovementPlatform platform )

protectedvirtual

Check if we should do a move based on the special platform.

Returns: true, if platform was checked, false otherwise.

Parameters

platform Platform.

◆ DoMove()

override void PlatformerPro.SpecialMovement_MecanimTargetted.DoMove ( )

Moves the character.

◆ DoSpecialMove()

override void PlatformerPro.SpecialMovement_MecanimTargetted.DoSpecialMove ( )

virtual

Start the special move.

Reimplemented from PlatformerPro.SpecialMovement.

◆ ForceMaintainControl()

override bool PlatformerPro.SpecialMovement_MecanimTargetted.ForceMaintainControl ( )

If this is true then the movement wants to maintain control of the character even if default transition conditions suggest it shouldn't.

Returns: true if control is wanted, false otherwise.

◆ Init()

override Movement PlatformerPro.SpecialMovement_MecanimTargetted.Init	(	Character	character,
		MovementVariable[]	movementData
	)

Initialise the mvoement with the given movement data.

Parameters

character	Character.
movementData	Movement data.

◆ LosingControl()

override void PlatformerPro.SpecialMovement_MecanimTargetted.LosingControl ( )

◆ ProcessMatchTarget()

virtual void PlatformerPro.SpecialMovement_MecanimTargetted.ProcessMatchTarget ( )

protectedvirtual

◆ WantsSpecialMove()

override bool PlatformerPro.SpecialMovement_MecanimTargetted.WantsSpecialMove ( )

virtual

Gets a value indicating whether this movement wants to do a special move.

true if this instance wants control; otherwise, false.

Reimplemented from PlatformerPro.SpecialMovement.

Member Data Documentation

◆ AnimationAsIntIndex

const int PlatformerPro.SpecialMovement_MecanimTargetted.AnimationAsIntIndex = 5

staticprotected

The index of the animation as in value.

◆ animationState

AnimationState PlatformerPro.SpecialMovement_MecanimTargetted.animationState

Animation state that we will set when playing this special move.

◆ facingDirection

int PlatformerPro.SpecialMovement_MecanimTargetted.facingDirection

protected

Direction we were facing when move began.

◆ MovementVariableCount

const int PlatformerPro.SpecialMovement_MecanimTargetted.MovementVariableCount = 6

staticprotected

The size of the movement variable array.

◆ moveStarted

bool PlatformerPro.SpecialMovement_MecanimTargetted.moveStarted

protected

Have we started the move?

◆ myAnimator

Animator PlatformerPro.SpecialMovement_MecanimTargetted.myAnimator

protected

Cached reference to the animator.

◆ originalRootMotionState

bool PlatformerPro.SpecialMovement_MecanimTargetted.originalRootMotionState

protected

Copy of the original value of the apply root motion variable. We will set state back to this on move completion.

◆ requiredSpeed

float PlatformerPro.SpecialMovement_MecanimTargetted.requiredSpeed

How fast we need to be going before we can start this movement.

◆ RequiredSpeedIndex

const int PlatformerPro.SpecialMovement_MecanimTargetted.RequiredSpeedIndex = 1

staticprotected

The index of the required speed.

◆ requiresJumpButton

bool PlatformerPro.SpecialMovement_MecanimTargetted.requiresJumpButton

Do we need to push the jump button to start this movement.

◆ RequiresJumpButtonIndex

const int PlatformerPro.SpecialMovement_MecanimTargetted.RequiresJumpButtonIndex = 0

staticprotected

The requires jump button index.

◆ targetEndTime

float PlatformerPro.SpecialMovement_MecanimTargetted.targetEndTime

Normalised time that the targetting ends.

◆ TargetEndTimeIndex

const int PlatformerPro.SpecialMovement_MecanimTargetted.TargetEndTimeIndex = 4

staticprotected

The index of the target end time value.

◆ targetLimb

AvatarTarget PlatformerPro.SpecialMovement_MecanimTargetted.targetLimb

Limb that will be targetted to the target position from the SpecialPlatform.

◆ TargetLimbIndex

const int PlatformerPro.SpecialMovement_MecanimTargetted.TargetLimbIndex = 2

staticprotected

The index of the target limb as int value.

◆ targetPosition

Vector3 PlatformerPro.SpecialMovement_MecanimTargetted.targetPosition

protected

Cached copy of the target position.

◆ targetStartTime

float PlatformerPro.SpecialMovement_MecanimTargetted.targetStartTime

Normalised time that the targetting starts.

◆ TargetStartTimeIndex

const int PlatformerPro.SpecialMovement_MecanimTargetted.TargetStartTimeIndex = 3

staticprotected

The index of the target start time value.

Property Documentation

◆ AnimationState

override AnimationState PlatformerPro.SpecialMovement_MecanimTargetted.AnimationState

get

Gets the animation state that this movement wants to set.

◆ FacingDirection

override int PlatformerPro.SpecialMovement_MecanimTargetted.FacingDirection

get

Returns the direction the character is facing. 0 for none, 1 for right, -1 for left. This overriden version always returns the input direction.

◆ Info

new static MovementInfo PlatformerPro.SpecialMovement_MecanimTargetted.Info

staticget

Static movement info used by the editor.

◆ ShouldApplyGravity

override bool PlatformerPro.SpecialMovement_MecanimTargetted.ShouldApplyGravity

get

Shoulds the apply gravity.

Returns: true, if apply gravity was shoulded, false otherwise.

◆ ShouldDoBaseCollisions

override RaycastType PlatformerPro.SpecialMovement_MecanimTargetted.ShouldDoBaseCollisions

get

Gets the should do base collisions.

The should do base collisions.

The documentation for this class was generated from the following file:

D:/Projects/platformer-pro-2019.3/Assets/PlatformerPro/Scripts/Movement/Special/SpecialMovement_MecanimTargetted.cs
